150mm UV-Resistant HDPE Geocell Landfill Erosion Control High Strength Black 14.2kN/m Welded

Name: 150mm UVResistant HDPE Geocell Landfill Erosion Control High Strength Black 142kNm Welded
Brand: GeoMax
Price: 1 USD

China 150mm UV-Resistant HDPE Geocell Landfill Erosion Control High Strength Black 14.2kN/m Welded wholesale

Brand Name : GeoMax

Model Number : GM150-330

Certification : CE,ISO9001-2015

Place of Origin : ANHUI CHINA

MOQ : 3000 ㎡

Price : Negotiation

Payment Terms : T/T, L/C

Supply Ability : 3000㎡ per day

Delivery Time : 10-20 days

Packaging Details : Folded strips are wrapped by film and layed on pallets or as requested

Material : 100% HDPE Plastic

Cell Thickness : 1.5mm

Surface : Smooth or Textured surface

Tensile Strength : 25kN/m

Standard : ASTM; GB Standard

Peel Strength : 14.2 kN/m

Height : 150mm

Color : Black

Welding Distance : 330mm

Density : 0.950 g/cm3

HPOIT : 400Min

Contact Now

150mm UV-Resistant HDPE Geocell Landfill Erosion Control High Strength Black 14.2kN/m Welded

GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax® Geocell is a high-performance, three-dimensional cellular structure made of

reinforced high-density polyethylene (HDPE) sheets that are ultrasonically welded together to form a robust mesh.

The cells can be filled with sand, soil, or locally sourced materials, making it a versatile and cost-effective solution for a wide range of geotechnical applications.

effective solution for a variety of geotechnical applications.

This innovative system offers value-engineered solutions for various infrastructure projects, including driveways, highways, railways, landscapes, landfills, parking lots, and more.

applications, including driveways, highways, railways, landscapes, landfills, and parking lots.

By reducing overall project costs, minimizing environmental impact, and streamlining pipelines. By reducing project costs, minimizing environmental impact, and streamlining

It delivers significant savings in both time and labor by reducing overall project costs and minimizing environmental impact.

SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

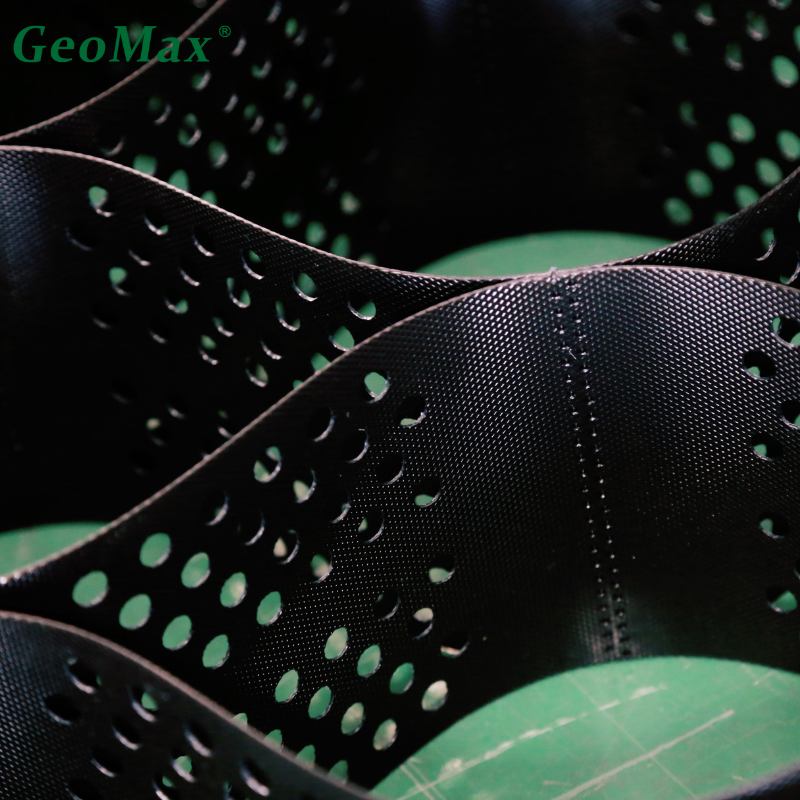

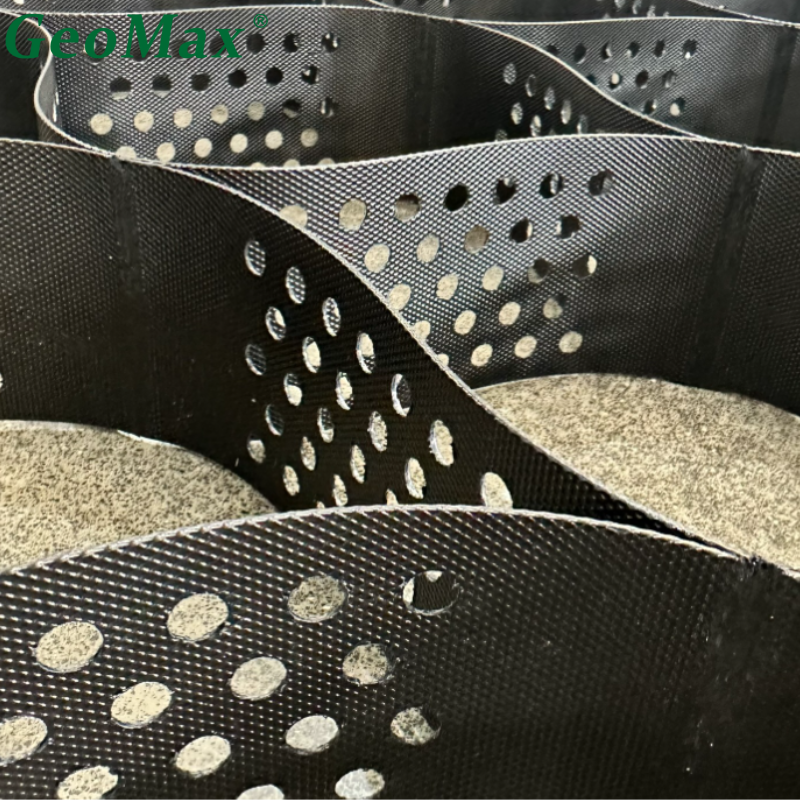

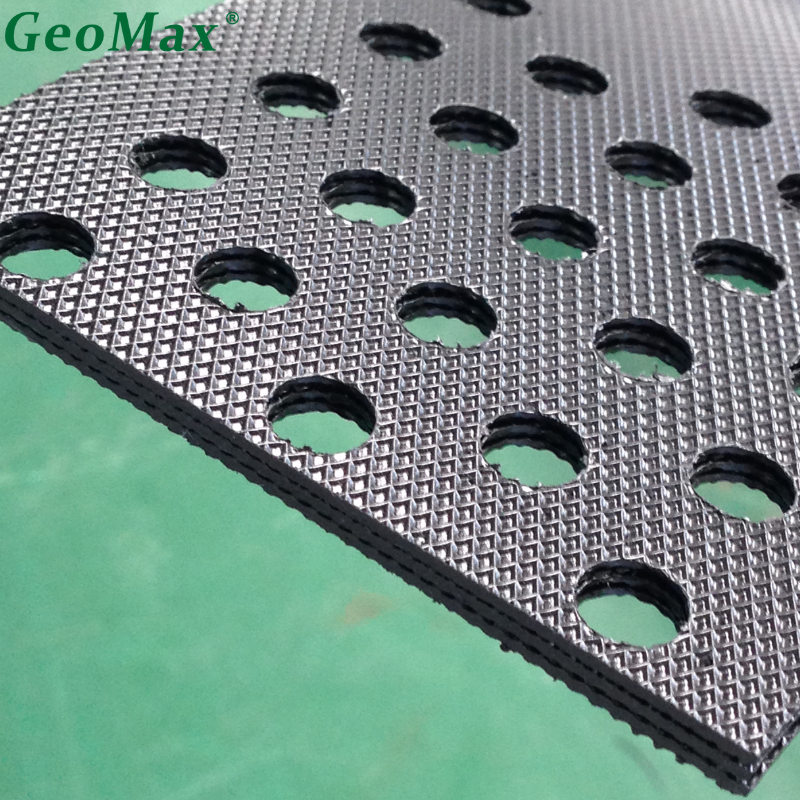

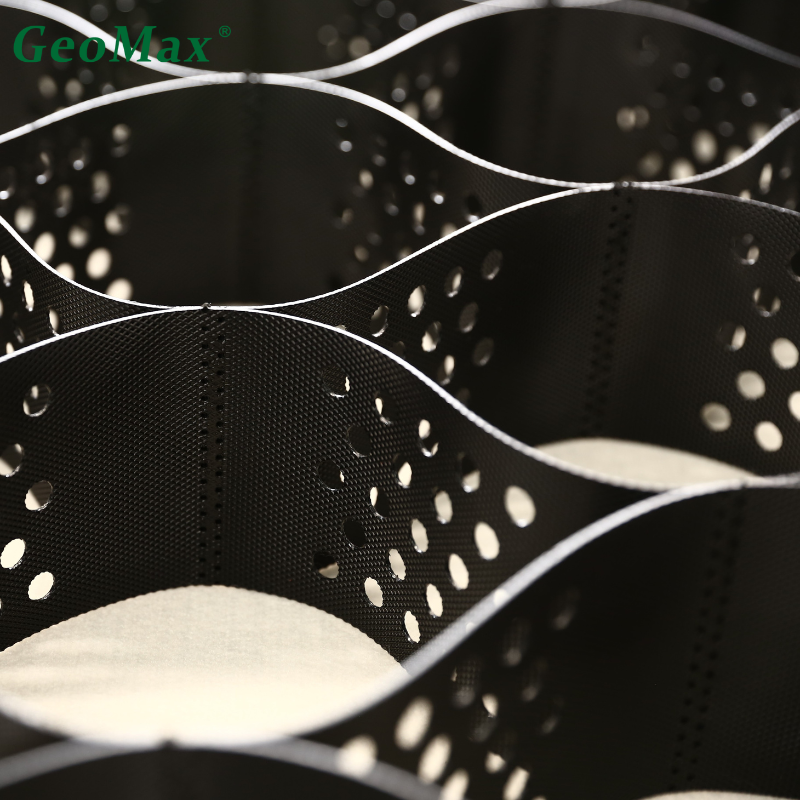

DETAILED PHOTOS

150mm UV-Resistant HDPE Geocell Landfill Erosion Control High Strength Black 14.2kN/m Welded

APPLICATIONS

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

PRODUCTION LINE

INVENTION AND TESTING

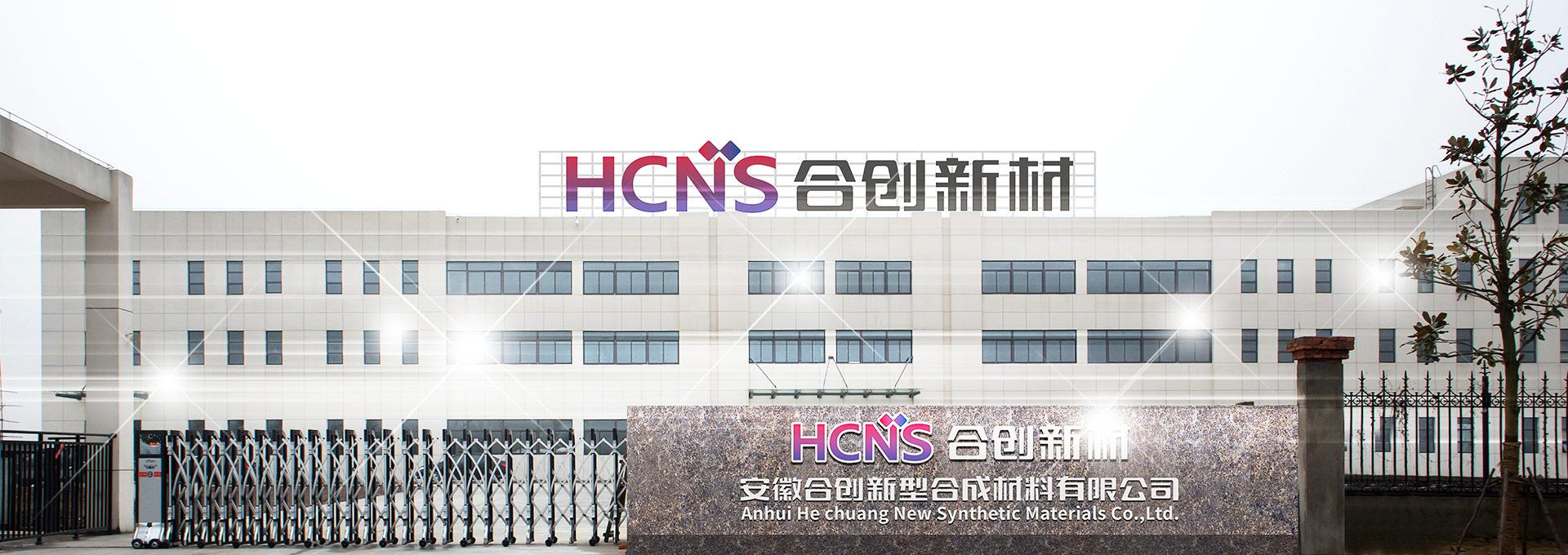

PRODUCT AREA
